How to debug TypeScript in Visual Studio Code

Debugging in Visual Studio Code is a game-changer for developers, offering powerful tools to identify and fix code issues efficiently. With features like breakpoints, variable inspection, and an intuitive interface, it simplifies error detection across multiple languages.Visual Studio Code provides a streamlined experience to help you write error-free code. Start utilizing these tools today and take your development process to the next level!

How to start debugging TypeScript in Visual Studio Code?
(Video Tutorial)

In this short video guide, we will demonstrate how easy it is to use the built-in debug feature for Visual Studio Code. Keep in mind, that there are more ways and tools for debugging, but this tutorial will only show the essentials.

Video 1 - How to debug an example program code in Visual Studio Code

How to debug TypeScript code in VS Code? (Quick Steps)

  • Open Visual Studio Code
  • Open the folder of your program
  • Make .vscode folder
  • Create launch.json file
  • Make tasks.json file
  • Click on Run and Debug
  • Add breakpoints
  • Run the program
  • Look at variables and start debugging

Step 1 - Open Visual Studio Code

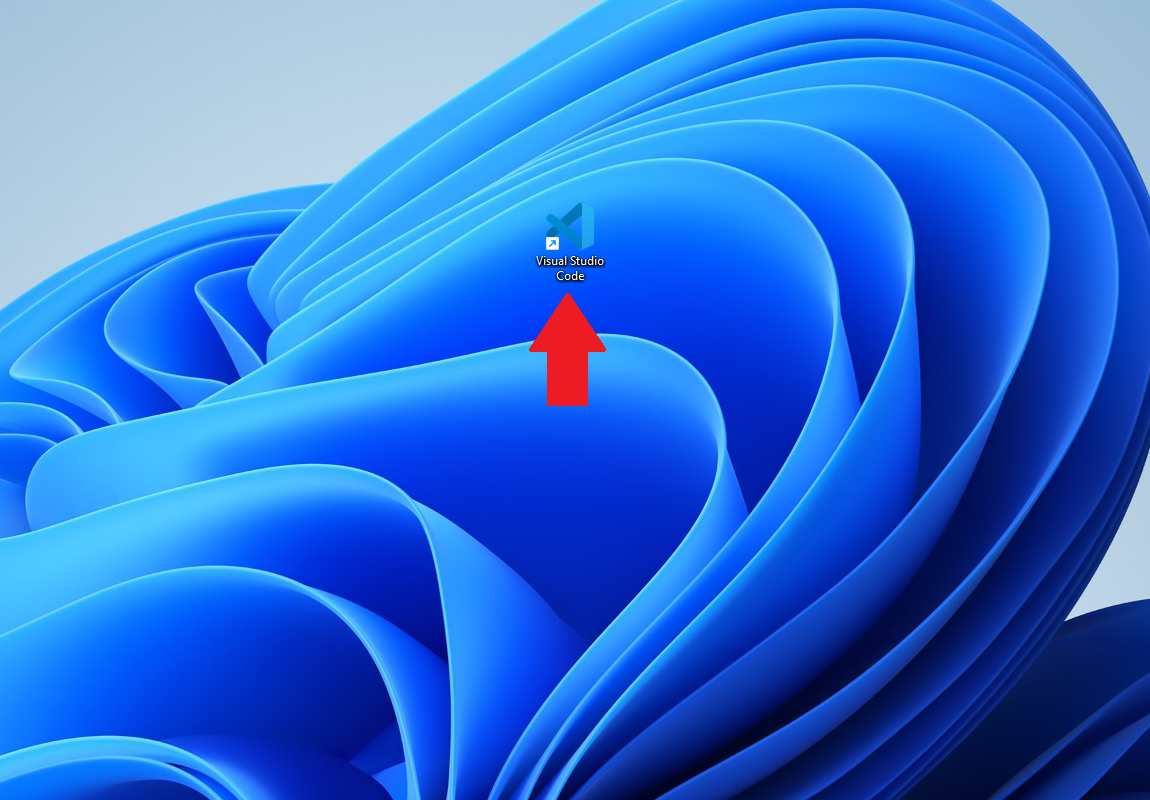

Start by locating the Visual Studio Code application icon on your desktop, press double-click to open it. Look at Figure 1

open vs code
Figure 1 - Open Visual Studio Code

Step 2 - Open the folder of your program

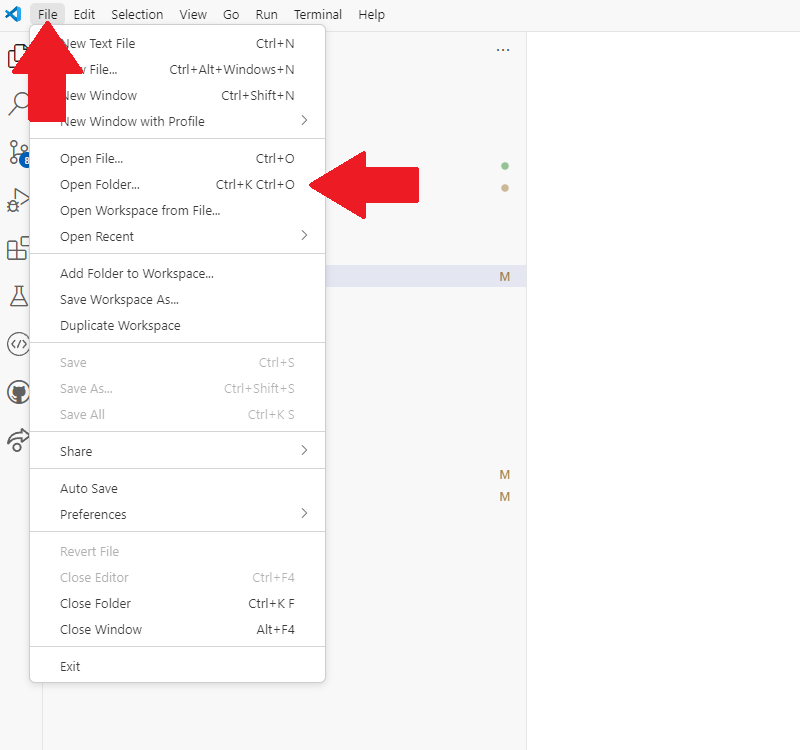

Go into Visual Studio Code, press the "File" tab, and click on "Open Folder", look for the program you want to debug. Use Figure 2 as visual help.

open folder
Figure 2 - Open folder

Step 3 - Create .vscode folder

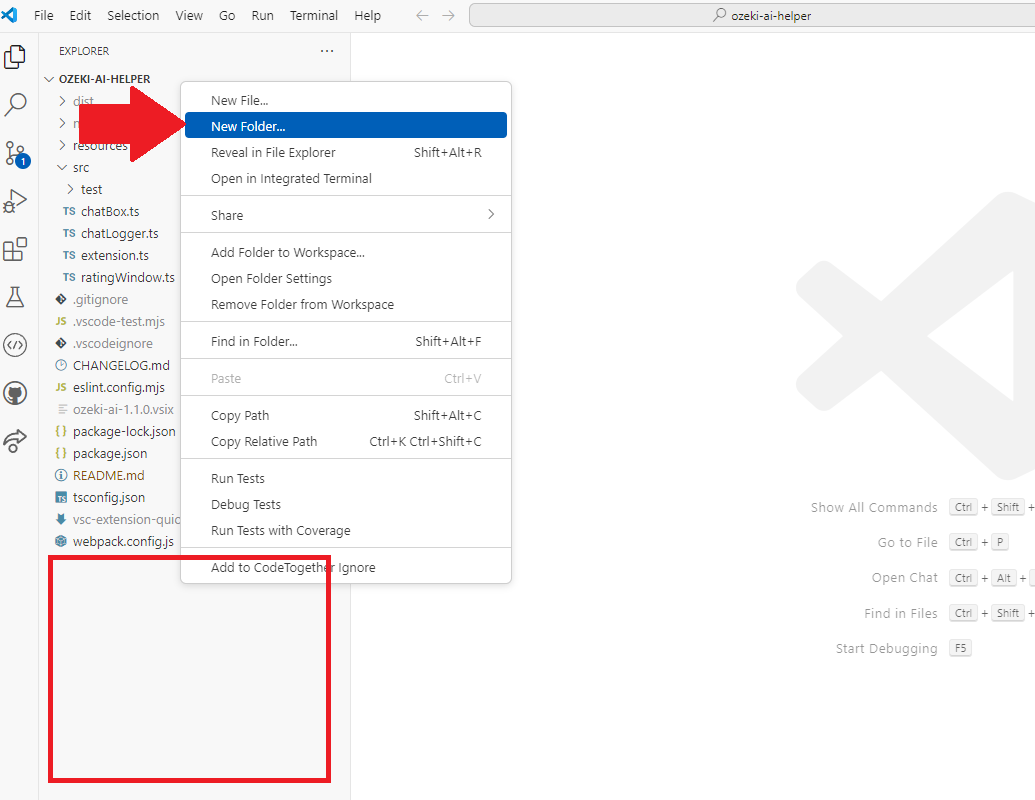

Press right click on the empty space in the explorer, and select "Add Folder". Name it ".vscode", this folder manages your VS Code settings. To start debugging our example code, we need two .JSON files to create in this folder. The example is shown in Figure 3.

create vscode folder
Figure 3 - Create .vscode folder

Step 4 - Make launch.json file

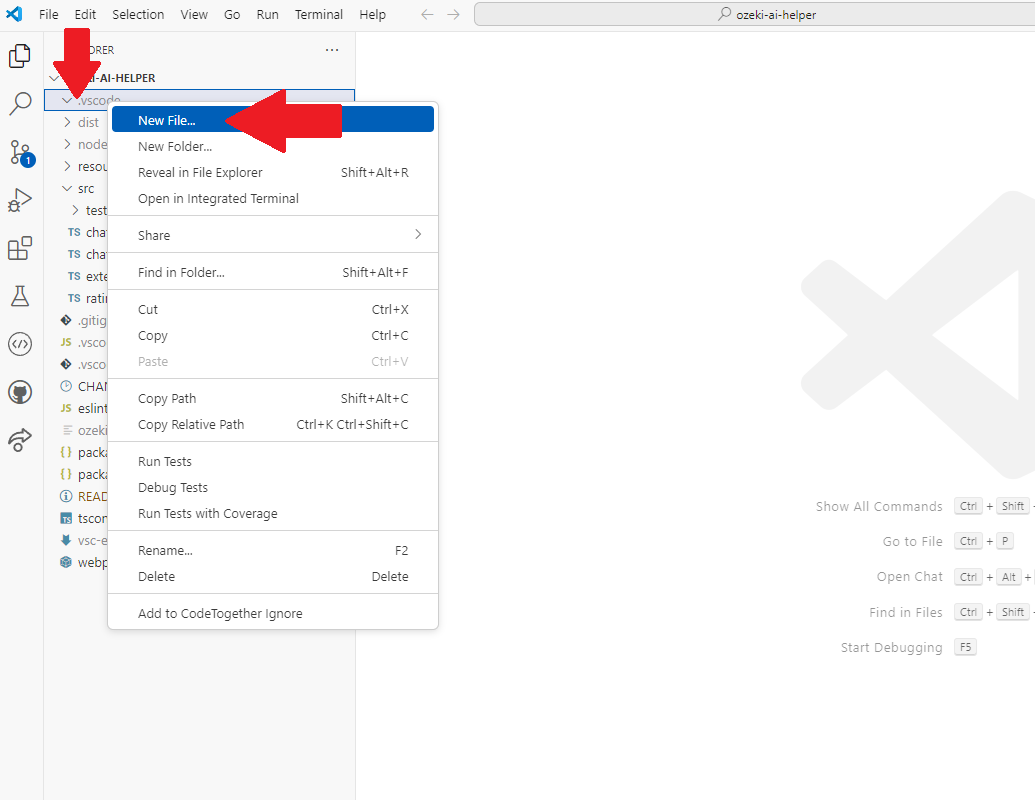

Press right click on the newly created .vscode folder, and now press "New File", name it "launch.json". Paste in the provided code. Doing this will automatically compile and open it in the debugging enviroment in another VS Code window, for better clarity. Look at Figure 4 if you need futher assistance.

{ "version": "0.2.0", "configurations": [ { "name": "Run Extension", "type": "extensionHost", "request": "launch", "args": [ "--extensionDevelopmentPath=${workspaceFolder}" ], "outFiles": [ "${workspaceFolder}/dist/**/*.js" ], "preLaunchTask": "${defaultBuildTask}" } ] }

create launch.json file
Figure 4 - Create launch.json file

Step 5 - Make tasks.json file

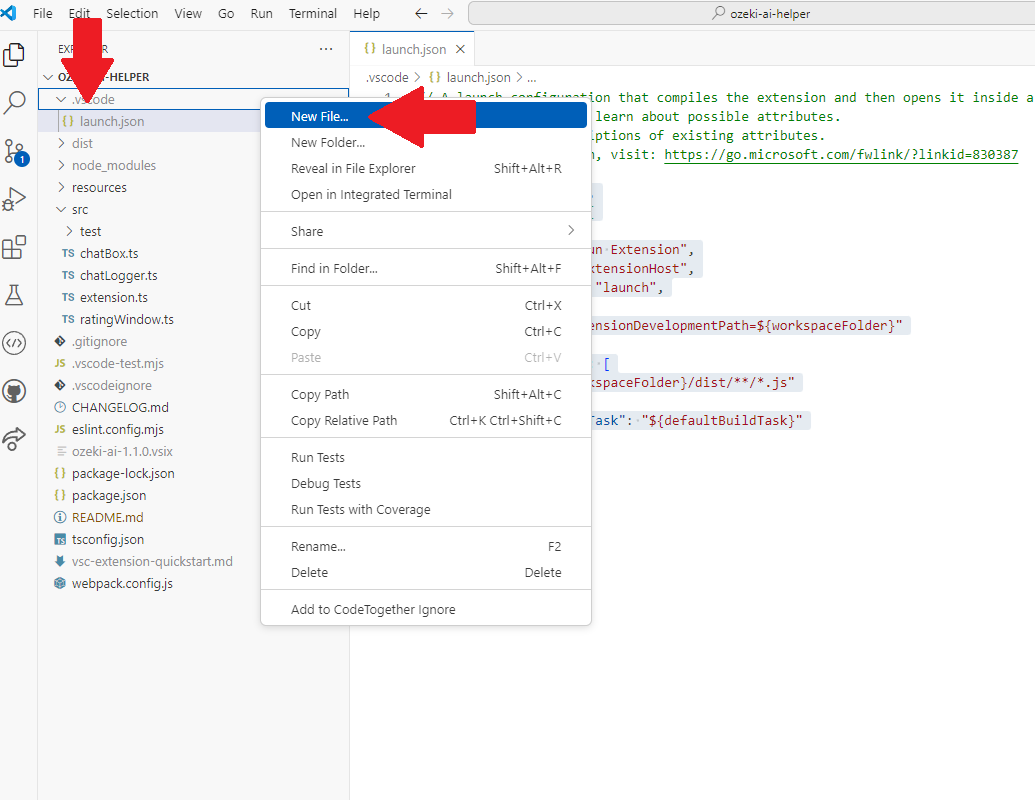

Make another file in the folder and name its "tasks.json". Like in the previous step, paste in the provided code. In this file we can declare the custom tasks for Visual Studio Code. These tasks allow you to automate repetitive tasks like building, testing, running scripts, or any other command-line operations directly from within the editor.

{ "version": "2.0.0", "tasks": [ { "type": "npm", "script": "watch", "problemMatcher": "$ts-webpack-watch", "isBackground": true, "presentation": { "reveal": "never", "group": "watchers" }, "group": { "kind": "build", "isDefault": true } }, { "type": "npm", "script": "watch-tests", "problemMatcher": "$tsc-watch", "isBackground": true, "presentation": { "reveal": "never", "group": "watchers" }, "group": "build" }, { "label": "tasks: watch-tests", "dependsOn": [ "npm: watch", "npm: watch-tests" ], "problemMatcher": [] } ] }

create tasks.json
Figure 5 - Create tasks.json file

Step 6 - Click on Run and Debug

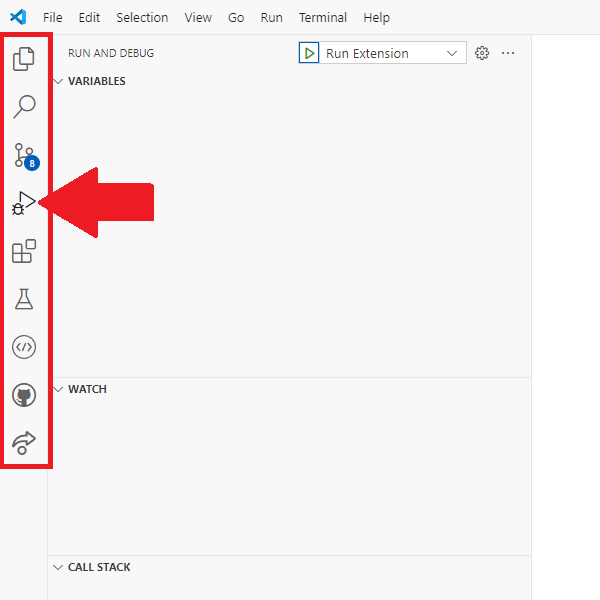

Locate the buttons on the left side of the interface, and find the "Run and Debug" button. Click on it to proceed. This action opens the debugging part of VS Code. As shown on Figure 6.

press debug
Figure 6 - Press Run and Debug

Step 7 - Add breakpoints

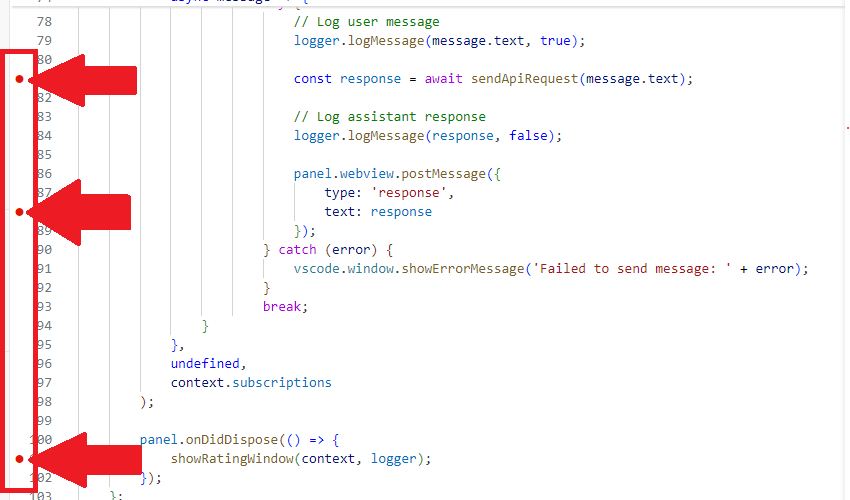

Add breakpoints to your code to pause its execution at specific lines. Look at Figure 7 This helps you examine variables and find potential problems in your code.

add breakpoints
Figure 7 - Press Run and Debug

Step 8 - Run the program

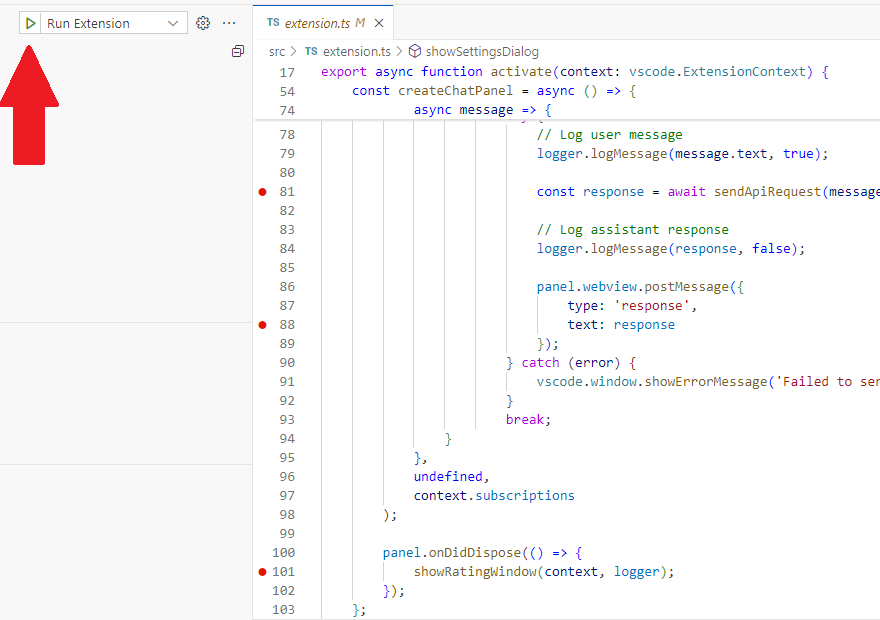

Find the "Run" button in the top-left corner of Visual Studio Code, or press F5 to enter debug mode. Use your program normally, and when it reaches a breakpoint, it will pause, allowing you to inspect the variables.Use Figure 8 as a handy guide.

start debug
Figure 8 - Start the debug process

Step 9 - Look at variables and start correcting the problems

After the code pauses at the breakpoint, check the Variables section in the top-left corner of Visual Studio Code. This will show the current values of your variables, so you can verify if they match your expectations. For additional help, see Figure 9.

example variables
Figure 9 - Look at example variables

Summary

A Visual Studio Code TypeScript tutorial provides developers with a practical introduction to working with TypeScript in one of the most popular code editors. You'll learn how to write and run TypeScript code and debug directly in VS Code. Whether you're new to TypeScript or looking to improve your skills, a VS Code tutorial helps streamline your workflow and takes full advantage of the editor’s powerful features.

Take a look at the PHP debugging tutorial—it’s a straightforward and easy-to-follow guide, much like this one.Both tutorials are designed to help you quickly grasp the process without overcomplicating things. Whether you're working with PHP or a Visual Studio Code extension, these guides make the process clear and accessible.
